microJAX

microJAX is a GPU-aware, auto-differentiable microlensing toolkit built on top of JAX. The library combines GPU-optimized image-centered inverse-ray shooting method and JAX-enabled XLA-acceralation to deliver fast and accurate magnifications and gradients for binary and triple lens systems.

Highlights

  • Accelerated finite sources – image-centered ray shooting (ICRS) with CUDA-ready batching.

  • Differentiable everywhere – gradients flow through polynomial solvers and ICRS for use in optimization and inference (e.g. HMC/VI) workflows.

  • Other Utilities – helpers for higher-order microlensing effects like orbital parallax, limb darkening, custom source motion, and more.

  • Composable likelihoods – analytic marginalisation utilities for inference.

Quick peek

Note: mag_binary also works on CPU but is very slow.

import jax
import jax.numpy as jnp
from microjax.point_source import mag_point_source
from microjax.inverse_ray.lightcurve import mag_binary
from microjax.point_source import critical_and_caustic_curves
jax.config.update("jax_enable_x64", True)

# Binary-lens parameters
s, q = 1.0, 0.01            # separation and mass ratio (m2/m1)
rho = 0.02                  # source radius (Einstein units)
tE, u0 = 30.0, 0.0          # Einstein time [days], impact parameter
alpha = jnp.deg2rad(10.0)   # trajectory angle in radian
t0 = 0.0

# Source trajectory
N_points = 1000
t = t0 + jnp.linspace(-tE, tE, N_points)
tau = (t - t0)/tE
y1 = -u0*jnp.sin(alpha) + tau*jnp.cos(alpha)
y2 =  u0*jnp.cos(alpha) + tau*jnp.sin(alpha)
w_points = jnp.array(y1 + y2 * 1j, dtype=complex)

# Point-source and Extended-source magnifications (binary lens)
mag_p   = mag_point_source(w_points, s=s, q=q, nlenses=2)
mag_ext = mag_binary(w_points, rho, s=s, q=q)

# Critical and caustic curves
crit, cau = critical_and_caustic_curves(s=s, q=q, nlenses=2, npts=1000)

import matplotlib.pyplot as plt
fig, ax = plt.subplots(1, 2, figsize=(10, 5))
ax[0].plot(t, mag_p, 'k--', label='Point Source')
ax[0].plot(t, mag_ext, 'r-', label='Extended Source')
ax[0].set_xlabel('Time (days)')
ax[0].set_ylabel('Magnification')
ax[0].set_yscale('log')
ax[0].legend()
ax[1].plot(cau.real, cau.imag, 'r.')
ax[1].plot(w_points.real, w_points.imag, 'b-')
ax[1].axis('equal')
plt.show()

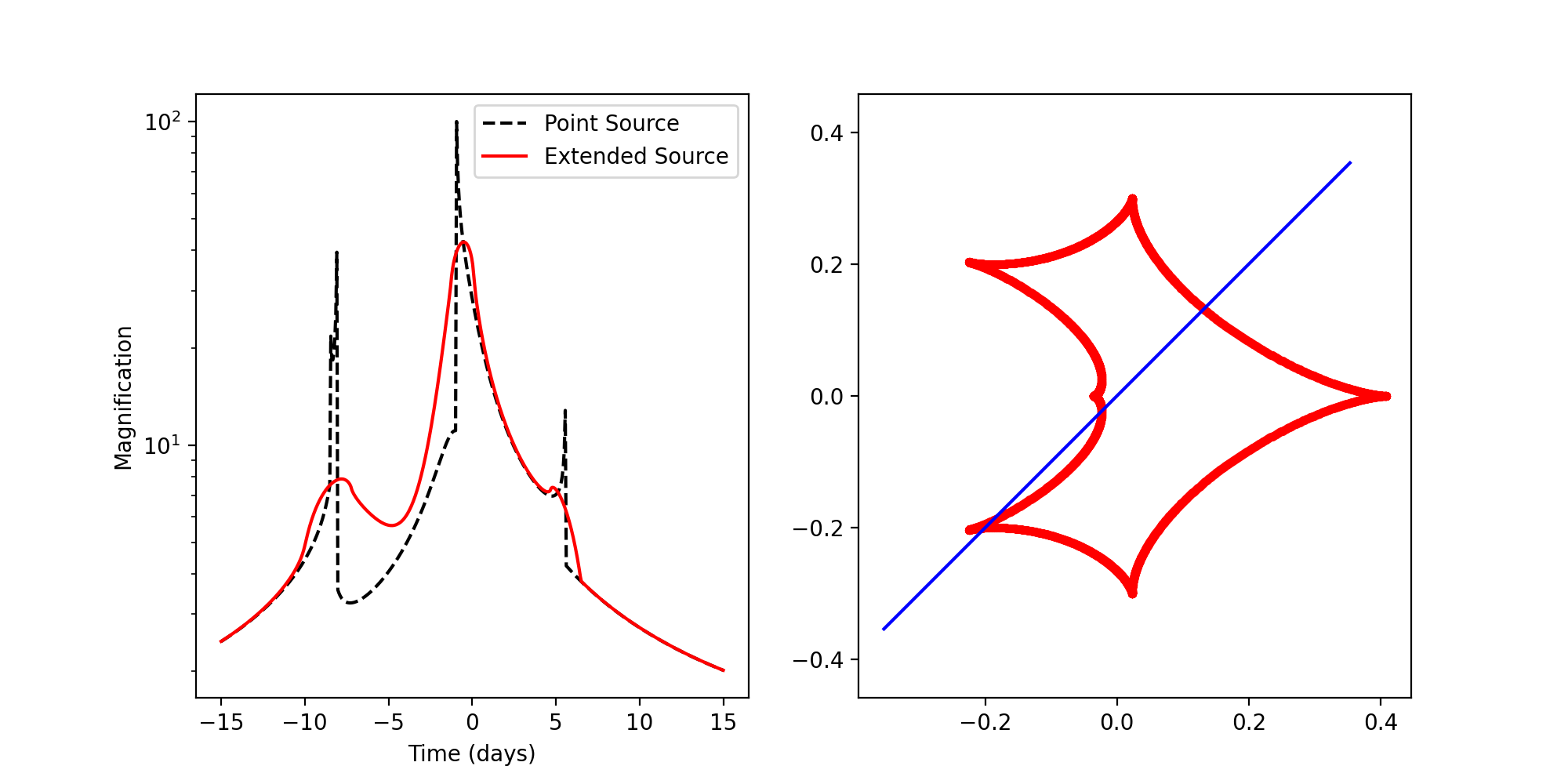

Light curve example

Use the sections below to install the package, explore worked examples, and dig into the API.
